Quick Details

  • Type: Other
  • Condition: New
  • Application: Machinery & Hardware
  • Packaging Type: Case
  • Packaging Material: Wood
  • Automatic Grade: Semi-Automatic
  • Driven Type: Pneumatic
  • Voltage: 380V/50HZ
  • Power: 5.5kw
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: eagle
  • Model Number: XY-TW
  • Weight: 1500KG
  • Dimension(L*W*H): 1100mm*1200mm*3250mm
  • Certification: ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 12 Months

Packaging & Delivery

Packaging Details WOOD CASE
Delivery Time 30DAYS

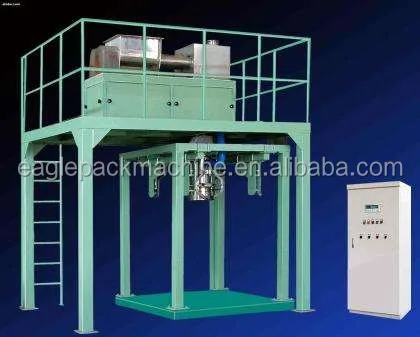

Tonnage-sack Packing machine is a kind of special equipment designed for large sack packing for various granule materials with fine liquidity. It is applied to the large-size packing for the materials such as grain, fertilizer, plastic particle and other chemical products, etc.

The packing machine adopts weighing hopper net weight type electronic-scale for weighing, with the advantages of accurate measuring, fast filling and packing, high automation, stable and reliable performance, convenient operation and maintenance, etc. It can combine a transfer line together with the conveyor and the thermal sealer, to complete the material packing procedures such as weighing, sealing and conveying.

Technical Parameters:

Packing Capacity: 20~50sacks/h

Accuracy: ≤±0.1%

Packing Capacity: 500~1000kg/sack

Supply Voltage: 380VAC, 50HZ

Compressed Air Source: 0.5~0.8MPa

Air Consumption: 0.02m3/sec

Relative Humidity: ≤80%

Ambient Temperature: -10~40°C



Technical characteristic:

Flow by gravity and three-stage flow rate control is adopted for the feeding, to achieve the accurate measurement.

Weighing control system is controlled by PLC programs. As per the user’s requirement, it may be fixed with communication interface to make it easy to form the computer network and then exercise real time monitoring and network management.

Dust collector is provided to avoid on-site dust pollution.

Designed on the basis of human-oriented conception, its sack clamping device adopts lifting structure, which makes the operations such as covering and clamping the sack easy. And after finishing the packing, it can automatically release the sack.

The weighing control instrument adopts the entire panel digital calibration and parameters setting, featured with the functions such as displaying accumulative weight, auto tare deduction, auto zero calibration, auto fall correction, over tolerance alarm, and fault self-diagnosis.

When placing the order, the characteristic parameters of the materials to be packed and the size of container sack are required to be provided.

Packaging

Selling Units:

Single item

Single volume:

12 cm3

Single gross weight:

500.0 KG

Package Type:

WOOD CASE

Single item



Our Service

1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.

2. OEM, Customized can be all accepted.

3. Contact us any time when you feel free.

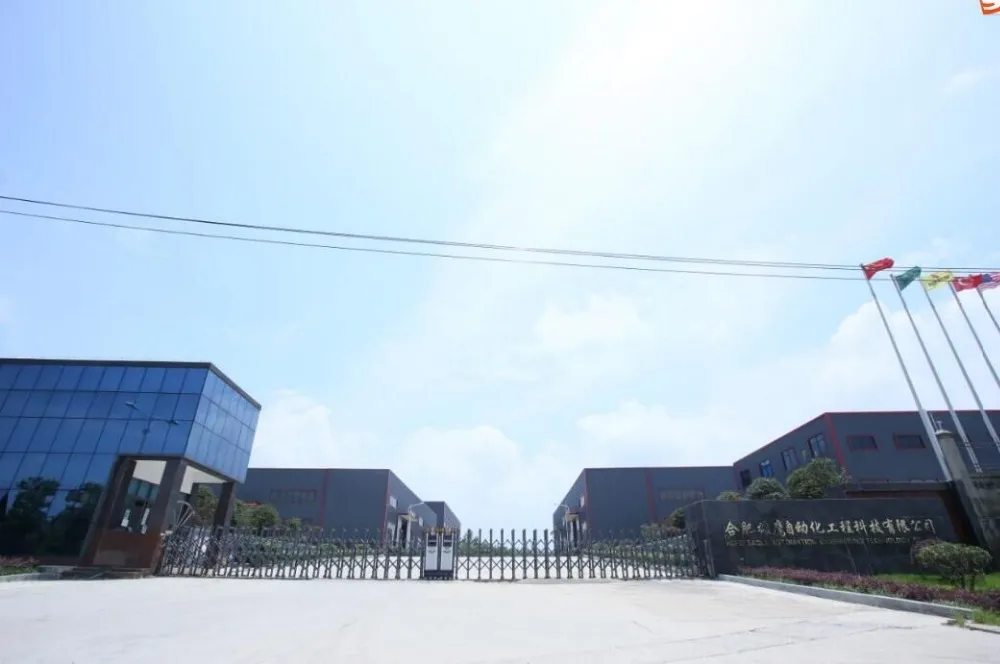

Factory Show
