cassava starch packaging machine

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 301 - 500 People
  • Factory Size: 50,000-100,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: 41 - 50 People
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 41% - 50%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Case
Packaging Material:
Wood
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
as you need
Power:
3KW
Place of Origin:
Anhui, China (Mainland)
Brand Name:
eagle
Model Number:
XY-L5W
Weight:
200KG
Dimension(L*W*H):
1*2*1
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
material:
stainless steel
Supply Ability
Supply Ability:
50000 Set/Sets per Year
Packaging & Delivery
Packaging Details
WOOD CASE
Port
China main ports
Lead Time :
30DAYS



Specifications

Powder bagging machine
1:PLC and Touch Screen
2:Servo motor ,Weight Feedback
3:10 Product Memory Storage
4:ISO900

POWDER BAGGING MACHINE

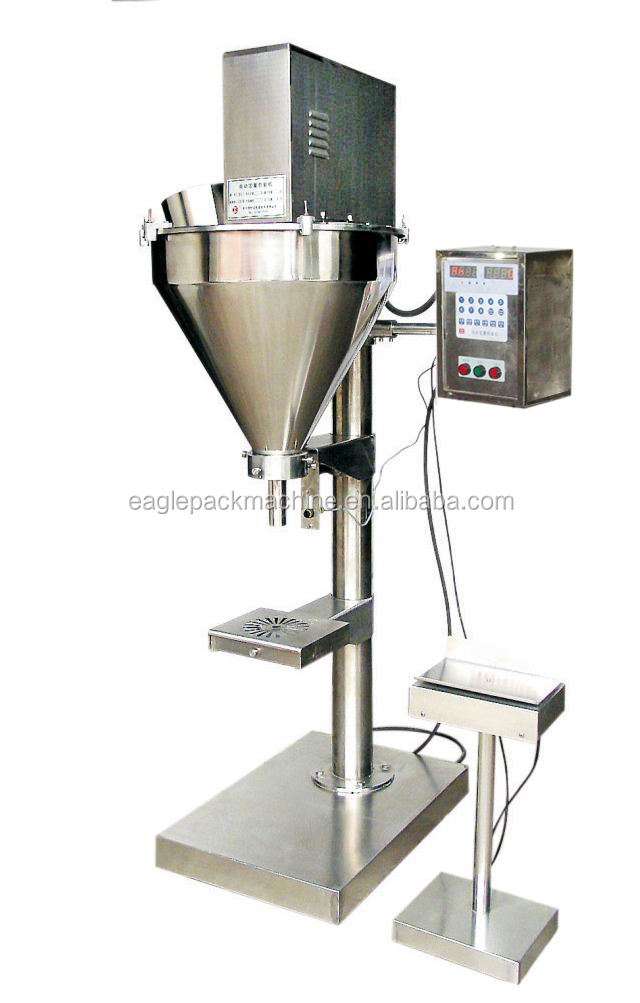

Semiautomatic Powder bagging Machine / Filling machine

Description :

The machine is mainly by combination of filling equipments , transparent and open style’s hopper , column and electronic control system.( The sealing may change by customers )

The whole body is made of stainless steel ; The Chinese/English is displayed in touch screen. HMI using PLC and touch screen ; It designed in terms of National “QS” and “GMP” standards ; The servo motor drive control the filling system , The geared motor made from Taiwan control the mixing system to keep the stable performance and high packaging accuracy ; The combinations of whole sealing machine , stainless steel’s body and PMMA material box made the clean easy ; The height adjustable working table ; Ten kinds of packaging parameters can be store ; For the dusty material’s packaging , we can add a dust collect for cleaning ; The machine is suitable for many kinds of size and powdery material’s packaging through changing the auger attachment .

Technical parameters :

Model

XY-L5W

Metering Mode

Auger filling , Electronic-sensing weighing feedback

Package Weight

10-5000g changeable( by changing auger attachment)

Package Accuracy

Package Weight         Speed(Min)        Accuracy

1000g                 25bags/min        With error 5g

2500g                 20bags/min        With error 10g

5000g                 15bags/min        With error 15g

Packaging Speed

20-45bags/min

Power Supply

380V   50Hz/60Hz( Customizable 220V’s motor)

Hopper Volume

50L(60L for oversized hopper)

Total Power

1.3Kw ; 1.8Kw for optional

Overall Dimensions

1200×800×2150mm
